封面
市场调查报告书
商品编码
1849858

晶体振盪器：市场占有率分析、产业趋势、统计数据和成长预测（2025-2030）

Crystal Oscillator - Market Share Analysis, Industry Trends & Statistics, Growth Forecasts (2025 - 2030)
出版日期: | 出版商: Mordor Intelligence | 英文 100 Pages | 商品交期: 2-3个工作天内

价格

※ 本网页内容可能与最新版本有所差异。详细情况请与我们联繫。

简介目录

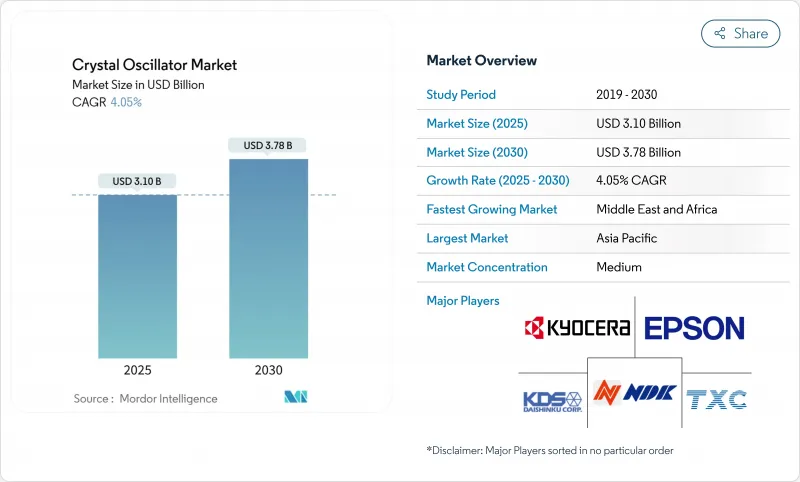

预计晶体振盪器市场规模在2025年将达31亿美元，2030年将达37.8亿美元，复合年增长率为4.05%。

晶体振盪器-市场-IMG1

这项技术在 5G基地台、汽车雷达和精密工业网路中发挥重要作用，儘管组件生命週期较短，但这些领域的需求仍将保持强劲。在计时精度能够降低干扰和资料完整性风险的领域，例如 5G 时分双工单元和 GHz 级雷达阵列，该技术的采用将会加速。低地球轨道卫星正在从笨重的铷原子钟标准过渡到紧凑的恆温控制晶体振盪器 (OCXO)，从而拓宽了可寻址范围。穿戴式装置和物联网节点的节能设计正在将石英振盪器市场扩展到能源采集环境，在这种环境中，每一微安培都至关重要。然而，围绕合成石英的供应链漏洞和日益严格的 RoHS 法规仍然是持续存在的阻力。

全球晶体振盪器市场趋势与见解

5G RRH 和小型基地台部署的激增需要超稳定的 TCXO

5G 网路要求频率和相位在 1.5 μs 以内对齐，以防止上下行干扰。远端射频头现在整合了 +/-50 ppb 的 TCXO，并在 GNSS 被欺骗时依靠精确的时间通讯协定保持，从而将授时从成本项目提升到服务品质保障。网路营运商正在指定使用Epson的 SC 切割石英晶共振器来承受热衝击，而小型基地台供应商正在为无法使用 GNSS 的室内站点整合板级 OCXO 备用方案。

汽车雷达和 ADAS 的普及推动了对 GHz 级 OCXO 的需求

向 77-79 GHz 雷达的过渡可实现厘米级分辨率，但需要抖动低于 100 fs 的 OCXO 来避开幽灵目标。配备八个或更多雷达模组的车辆依靠连贯定时来融合感测器数据，以实现 3 级自动驾驶。 Skyworks 的 Si5332 时钟产生器符合此要求，提供 ISO26262 合规性和相位阵列同步功能。该装置必须通过 AEC-Q200 认证，并在 -40 度C至 125 度C 的温度下工作，这提高了进入门槛，并将竞争限制在拥有深厚汽车专业知识的公司。

MEMS时钟产生器ASP价格下跌吞噬低端石英XO

SiTime 的时脉 SoC 整合了 PLL、谐振器和频谱功能，可将基板空间减少 50%，并允许 OEM 厂商无需使用多个 SPXO。虽然石英在 MEMS 一半的电流下仍能实现 0.18ps 的抖动，但灵活的频率选单和更少的 SKU 数量对注重成本的买家极具吸引力。随着 MEMS 产量的增加，商用 SPXO 的平均售价面临下行压力，促使石英供应商加倍投入高阶 OCXO 和汽车产品线。

細項分析

到2024年，TCXO（温度补偿晶体振盪器）类别将占据晶体振盪器市场的36.2%，这主要得益于通讯设备在紧张的预算下优先考虑+100 ppb的稳定性。持续的微型化使得2.0 x 1.6毫米封装成为可能，且不会牺牲+-1 ppm的性能。然而，到2030年，OCXO细分市场将以4.3%的复合年增长率引领成长，这主要得益于低地球轨道卫星和5G边缘伺服器对亚ppm级保持效能的需求。这些趋势将使OCXO在精密基础设施支出的晶体振盪器市场中占据更大的份额。

OCXO 采用双温区设计、复合晶体切割和数位温度补偿，使EpsonOG7050CAN 系列的预热功耗降低了 56%。 VCXO 也被用于需要按需调整频率的时间敏感网路闸道。基于 MEMS 的 XO 可实现面积优于相位杂讯的设计，但会增加 BOM 成本。 FCXO 和 SAW 装置仍属于小众市场，主要用于测试设备和毫米波链路。

到2024年，表面贴装封装将占总营收的68.7%，随着智慧型手机和物联网电路板密度的提升，这一比例也将持续扩大。自动化封装缩短了组装时间，并允许设计人员在PCB的两面堆迭元件，这进一步推动了晶体振盪器市场向晶片级整合的转变。通孔封装的份额仅在振动和热梯度威胁焊点完整性的场合才会存在，例如铁路信号模组和航空电子设备。

传统的国防和太空项目指定使用通孔封装，用于现场维修和密封。 Lacon 的太空级 HC45 封装符合 QML-V筛检标准，10 年老化精度可达 ±0.1 ppm 或更低，而表面黏着技术蓝图图元件则经过每小时 1,000 次回流焊接测试，可满足商业生产线的要求。这种二分法使两种封装形式都具有实用性，儘管在整个晶体振盪器市场，其产量更倾向于易于拾放的封装形式。

区域分析

受日本合成石英高压釜和中国PCB组装规模的推动，亚太地区将在2024年占据晶体振盪器市场收入的47.6%。由于中国行动电话生产低迷，日本的产量将下降，2024年组件出货量将年减25%。然而，该地区8吋晶圆切片的生产能力无与伦比。中国正寻求实现5G无线产品的国产化，并将继续大量采购SPXO。韩国和台湾专注于中游晶圆加工，从而实现区域闭合迴路供应，并降低每个振盪器的物流成本。

北美在基于MEMS和军用级OCXO的市场中占据着很高的份额。 SiTime位于硅谷的无晶圆厂模式采用了台积电的MEMS生产线，而Microchip位于新罕布夏州的石英工厂则为Vectron的航太封装提供支援。国防预算和资料中心的升级推动了该地区晶体振盪器市场平均售价的上涨，因为该地区的晶体振盪器市场更重视性能而非价格。

欧洲专注于供应链对冲策略。 Quartzcom 的瑞士晶圆和德国研发丛集降低了日本集中风险。欧盟 RoHS 截止日期加速了无铅重新认证，为当地测试机构带来了业务收益。中东和非洲是发展最快的地区，复合年增长率为 5.7%，其中沙乌地阿拉伯价值 2.66 亿美元的半导体中心预计到 2030 年将容纳 50 家设计工作室。利雅德和杜拜的智慧城市发展进一步推动了该地区对物联网闸道和 5G小型基地台精确计时的需求，拓宽了晶体振盪器的市场基础。南美洲保持温和成长，主要受巴西和哥伦比亚通讯业者升级的推动，儘管物流距离和上游供应有限制约了成长。

其他福利：

  • Excel 格式的市场预测 (ME) 表
  • 3个月的分析师支持

目录

第一章 引言

  • 研究假设和市场定义
  • 调查范围

第二章调查方法

第三章执行摘要

第四章 市场状况

  • 市场概况
  • 市场驱动因素
    • 5G RRH 和小型基地台部署的激增需要超稳定的 TCXO
    • 汽车雷达和 ADAS 的普及将推动对 GHz 级 OCXO 的需求
    • 空间受限的低地球轨道卫星从铷晶振过渡到高稳定度 OCXO
    • 穿戴式/物联网节点的快速普及需要微型 SPXO 和 MEMS-XO 混合元件
    • 工厂车间数位化（工业 4.0）促进 VCXO 在时间敏感网路中的使用
    • 军事转向软体定义无线电推动 SC-cut OCXO 采购
  • 市场限制
    • MEMS时钟产生器ASP进军低成本石英XO市场
    • 合成石英晶片供应链的脆弱性（主要在日本）
    • 高温漂移限制了XO在SiC动力传动系统中的应用
    • 欧盟RoHS法规趋严 无铅焊料窗口重新认证成本上升
  • 产业价值链分析
  • 监理展望
  • 技术展望
  • 波特五力分析
    • 供应商的议价能力
    • 买方的议价能力
    • 新进入者的威胁
    • 替代品的威胁
    • 竞争对手之间的竞争
  • 宏观经济趋势对晶体振盪器市场的影响

第五章市场规模与成长预测（价值）

  • 依晶体类型
    • 温度补偿型（TCXO）
    • 恆温晶振 (OCXO)
    • 电压调节器（VCXO）
    • 简单封装（SPXO）
    • 频率控制（FCXO）
    • 基于MEMS的晶体振盪器
    • 其他晶体类型
  • 依安装方式
    • 表面黏着技术
    • 通孔
  • 水晶切割
    • AT 切割
    • BT Cut
    • SC 切割
    • 其他（IT-CUT、FC-CUT）
  • 按最终用户产业
    • 家电
    • 通讯和网路
    • 车
    • 航太和国防
    • 工业自动化
    • 医药和保健
    • 调查和测量
    • 其他行业
  • 按地区
    • 北美洲
      • 美国
      • 加拿大
      • 墨西哥
    • 欧洲
      • 德国
      • 英国
      • 法国
      • 北欧国家
      • 其他欧洲地区
    • 南美洲
      • 巴西
      • 南美洲其他地区
    • 亚太地区
      • 中国
      • 日本
      • 印度
      • 东南亚
      • 其他亚太地区
    • 中东和非洲
      • 中东
      • GCC
      • 土耳其
      • 其他中东地区
      • 非洲
      • 南非
      • 其他非洲国家

第六章 竞争态势

  • 市场集中度
  • 策略趋势
  • 市占率分析
  • 公司简介
    • Seiko Epson Corporation
    • Kyocera Corporation
    • Nihon Dempa Kogyo（NDK）Co. Ltd
    • Daishinku Corp.
    • TXC Corporation
    • SiTime Corporation
    • Rakon Ltd
    • Vectron International（Microchip）
    • Siward Crystal Technology Co. Ltd
    • Hosonic Electronic Co. Ltd
    • Fox Electronics
    • CTS Corporation
    • Abracon LLC
    • ECS Inc.
    • Micro Crystal AG
    • Jauch Quartz GmbH
    • Statek Corporation
    • River Eletec Corporation
    • Mercury Electronic Ind Co. Ltd
    • Raltron Electronics Corporation
    • Aker Technology Co. Ltd
    • NEL Frequency Controls Inc.
    • WTL Frequency Products Co. Ltd

第七章 市场机会与未来展望

简介目录
Product Code: 47712

The crystal oscillator market is valued at USD 3.10 billion in 2025 and is forecast to reach USD 3.78 billion by 2030, advancing at a 4.05% CAGR.

Crystal Oscillator - Market - IMG1

The technology's entrenched role in 5G base stations, automotive radar, and precision industrial networks sustains demand even as component lifecycles shorten. Adoption accelerates wherever timing precision mitigates interference or data-integrity risks, such as 5G Time Division Duplex cells and GHz-level radar arrays. Migrations away from bulky rubidium standards toward compact Oven-Controlled Crystal Oscillators (OCXOs) in Low Earth Orbit satellites broaden the addressable base. Power-efficient designs for wearable and IoT nodes are expanding the reach of the crystal oscillator market into energy-harvesting environments where every microampere matters. Meanwhile, supply-chain fragility around synthetic quartz and tightening RoHS compliance remain persistent headwinds.

Global Crystal Oscillator Market Trends and Insights

Surge in 5G RRH and Small-Cell Deployments Requiring Ultra-Stable TCXOs

5G networks demand frequency and phase alignment within 1.5 µs to prevent uplink-downlink interference. Remote Radio Heads now embed +-50 ppb TCXOs and rely on Precision Time Protocol holdover when GNSS is spoofed, elevating timing from a cost line item to a quality-of-service safeguard. Network operators specify SC-cut crystal units from Epson that survive thermal shock, while small-cell vendors integrate board-level OCXO backups for indoor sites where GNSS is unavailable.

Automotive Radar and ADAS Uptake Driving GHz-Level OCXO Demand

The shift to 77-79 GHz radar enables centimeter-scale resolution but necessitates OCXOs with sub-100 fs jitter to avoid ghost targets. Vehicles hosting eight or more radar modules depend on coherent timing to fuse sensor data for Level-3 autonomy. Skyworks' Si5332 clock generator delivers ISO26262 compliance and phased-array synchronization to meet this requirement. Entry barriers rise because devices must pass AEC-Q200 and function from -40 °C to 125 °C, limiting competition to firms with deep automotive pedigrees.

MEMS Clock-Generator ASP Erosion Cannibalising Low-End Quartz XOs

SiTime's Clock-SoC integrates PLLs, resonators, and spread-spectrum functions, shrinking board area by 50% and letting OEMs drop multiple SPXOs. Although quartz still delivers 0.18 ps jitter at half the current of MEMS, the flexible frequency menu and reduced SKU count entice cost-sensitive buyers. Average selling prices on commodity SPXOs face down-pressure as MEMS volume grows, prompting quartz suppliers to double down on premium OCXO and automotive lines.

Other drivers and restraints analyzed in the detailed report include:

  1. Migration from Rubidium to High-Stability OCXOs in Space-Constrained LEO Satellites
  2. Rapid Proliferation of Wearable/IoT Nodes Mandating Miniature SPXOs and MEMS-XO Hybrids
  3. Supply-Chain Fragility of Synthetic Quartz Wafers

For complete list of drivers and restraints, kindly check the Table Of Contents.

Segment Analysis

The TCXO category held a 36.2% slice of the crystal oscillator market in 2024, supported by telecom equipment that values +-100 ppb stability within tight budgets. Continuous miniaturization now reaches 2.0 X 1.6 mm packages without sacrificing +-1 ppm performance. However, the OCXO subsegment leads growth at 4.3% CAGR to 2030, fueled by LEO satellites and 5G edge servers demanding sub-ppm holdover. These trends position OCXOs to capture a larger share of the crystal oscillator market size for precision infrastructure spending.

OCXOs leverage double-oven designs, composite crystal cuts, and digital temperature compensation to slash warm-up power by 56% in Epson's OG7050CAN series. Simple Packaged Crystal Oscillators keep cost-driven consumer goods ticking, while VCXOs gain in Time-Sensitive Networking gateways that must retune frequency on demand. MEMS-based XOs command design wins where footprint trumps phase noise, despite higher BOM cost. FCXOs and SAW devices remain niche, serving test equipment and mm-wave links.

Surface-mount packages owned 68.7% revenue in 2024 and expand alongside smartphone and IoT board densities. Automated placement trims assembly minutes and frees designers to stack components on both PCB sides, reinforcing the crystal oscillator market's shift toward chip-level integration. The through-hole share persists only where vibration or thermal gradients threaten solder-joint integrity, such as rail-signaling modules or launch-vehicle avionics.

Legacy defense and space programs specify through-hole cans for field repairs and hermeticity. Rakon's space-qualified HC45 package offers 10-year aging below +-0.1 ppm, meeting QML-V screening levels. Meanwhile, surface-mount roadmap devices test 1,000-cycle-per-hour reflow profiles to endure consumer production lines. The dichotomy ensures both schemes stay relevant, although volume tilts further toward pick-and-place friendly outlines across the wider crystal oscillator market.

The Crystal Oscillator Market Report is Segmented by Crystal Type (Temperature-Compensated (TCXO), Oven-Controlled (OCXO), Voltage-Controlled (VCXO), and More), Mounting Scheme (Surface-Mount, and Thru-Hole), Crystal Cut (AT-Cut, BT-Cut, SC-Cut, and More), End-User Industry (Consumer Electronics, Telecom and Networking, Aerospace and Defense, and More), and Geography. The Market Forecasts are Provided in Terms of Value (USD).

Geography Analysis

Asia Pacific held 47.6% of crystal oscillator market revenue in 2024, anchored by Japan's synthetic quartz autoclaves and China's PCB assembly scale. Japanese volumes dipped on weak Chinese handset output, with parts shipments down 25% year-on-year in 2024, yet regional capacity remained unrivaled for 8-inch wafer slicing. China's push for indigenous 5G radios still drives bulk SPXO purchases, cushioning producers against handset softness. South Korea and Taiwan specialize in midstream wafer processing, enabling regional closed-loop supply that lowers logistics cost per oscillator.

North America commands premium share in MEMS-based and military-grade OCXOs. SiTime's Silicon Valley fabless model co-opts TSMC MEMS lines, while Microchip's New Hampshire crystal plant supports Vectron-labelled aerospace cans. Defense budgets and datacenter upgrades prioritize performance over price, thus supporting higher average selling prices within the regional crystal oscillator market.

Europe concentrates on supply-chain hedge strategies. QuartzCom's Swiss wafers and Germany's R&D clusters mitigate Japan concentration risk. EU RoHS deadlines accelerate lead-free requalifications, creating services revenue for local test houses. Middle East and Africa advance fastest at 5.7% CAGR, spearheaded by Saudi Arabia's USD 266 million semiconductor hub forming 50 design houses by 2030. Smart-city rollouts in Riyadh and Dubai further expand regional demand for precise timing in IoT gateways and 5G small cells, broadening the crystal oscillator market footprint. South America remains modest, driven mainly by carrier upgrades in Brazil and Colombia, but logistic distances and limited upstream supply temper growth.

  1. Seiko Epson Corporation
  2. Kyocera Corporation
  3. Nihon Dempa Kogyo (NDK) Co. Ltd
  4. Daishinku Corp.
  5. TXC Corporation
  6. SiTime Corporation
  7. Rakon Ltd
  8. Vectron International (Microchip)
  9. Siward Crystal Technology Co. Ltd
  10. Hosonic Electronic Co. Ltd
  11. Fox Electronics
  12. CTS Corporation
  13. Abracon LLC
  14. ECS Inc.
  15. Micro Crystal AG
  16. Jauch Quartz GmbH
  17. Statek Corporation
  18. River Eletec Corporation
  19. Mercury Electronic Ind Co. Ltd
  20. Raltron Electronics Corporation
  21. Aker Technology Co. Ltd
  22. NEL Frequency Controls Inc.
  23. WTL Frequency Products Co. Ltd

Additional Benefits:

  • The market estimate (ME) sheet in Excel format
  • 3 months of analyst support

TABLE OF CONTENTS

1 INTRODUCTION

  • 1.1 Study Assumptions and Market Definition
  • 1.2 Scope of the Study

2 RESEARCH METHODOLOGY

3 EXECUTIVE SUMMARY

4 MARKET LANDSCAPE

  • 4.1 Market Overview
  • 4.2 Market Drivers
    • 4.2.1 Surge in 5G RRH and Small-Cell Deployments Requiring Ultra-Stable TCXOs
    • 4.2.2 Automotive Radar and ADAS Uptake Driving GHz-level OCXO Demand
    • 4.2.3 Migration from Rubidium to High-Stability OCXOs in Space-Constrained LEO Satellites
    • 4.2.4 Rapid Proliferation of Wearable/IoT Nodes Mandating Miniature SPXOs and MEMS-XO Hybrids
    • 4.2.5 Factory-Floor Digitalisation (Industry 4.0) Elevating VCXO Use in Time-Sensitive Networking
    • 4.2.6 Military Conversion to Software-Defined Radios Boosting SC-Cut OCXO Procurement
  • 4.3 Market Restraints
    • 4.3.1 MEMS Clock-Generator ASP Erosion Cannibalising Low-End Quartz XOs
    • 4.3.2 Supply-Chain Fragility of Synthetic Quartz Wafers (Japan-Centric)
    • 4.3.3 High-Temperature Drift Limiting XO Adoption in SiC-Based Powertrains
    • 4.3.4 Stringent EU RoHS Lead-Free Solder Windows Raising Requalification Cost
  • 4.4 Industry Value Chain Analysis
  • 4.5 Regulatory Outlook
  • 4.6 Technological Outlook
  • 4.7 Porter's Five Forces Analysis
    • 4.7.1 Bargaining Power of Suppliers
    • 4.7.2 Bargaining Power of Buyers
    • 4.7.3 Threat of New Entrants
    • 4.7.4 Threat of Substitute Products
    • 4.7.5 Intensity of Competitive Rivalry
  • 4.8 Impact of Macroeconomic Trends on the Crystal Oscillator Market

5 MARKET SIZE AND GROWTH FORECASTS (VALUES)

  • 5.1 By Crystal Type
    • 5.1.1 Temperature-Compensated (TCXO)
    • 5.1.2 Oven-Controlled (OCXO)
    • 5.1.3 Voltage-Controlled (VCXO)
    • 5.1.4 Simple Packaged (SPXO)
    • 5.1.5 Frequency-Controlled (FCXO)
    • 5.1.6 MEMS-Based Crystal Oscillators
    • 5.1.7 Other Crystal Types
  • 5.2 By Mounting Scheme
    • 5.2.1 Surface-Mount
    • 5.2.2 Thru-Hole
  • 5.3 By Crystal Cut
    • 5.3.1 AT-Cut
    • 5.3.2 BT-Cut
    • 5.3.3 SC-Cut
    • 5.3.4 Others (IT-CUT, FC-Cut)
  • 5.4 By End-user Industry
    • 5.4.1 Consumer Electronics
    • 5.4.2 Telecom and Networking
    • 5.4.3 Automotive
    • 5.4.4 Aerospace and Defense
    • 5.4.5 Industrial Automation
    • 5.4.6 Medical and Healthcare
    • 5.4.7 Research and Measurement
    • 5.4.8 Other Industries
  • 5.5 By Geography
    • 5.5.1 North America
      • 5.5.1.1 United States
      • 5.5.1.2 Canada
      • 5.5.1.3 Mexico
    • 5.5.2 Europe
      • 5.5.2.1 Germany
      • 5.5.2.2 United Kingdom
      • 5.5.2.3 France
      • 5.5.2.4 Nordics
      • 5.5.2.5 Rest of Europe
    • 5.5.3 South America
      • 5.5.3.1 Brazil
      • 5.5.3.2 Rest of South America
    • 5.5.4 Asia-Pacific
      • 5.5.4.1 China
      • 5.5.4.2 Japan
      • 5.5.4.3 India
      • 5.5.4.4 South-East Asia
      • 5.5.4.5 Rest of Asia-Pacific
    • 5.5.5 Middle East and Africa
      • 5.5.5.1 Middle East
      • 5.5.5.1.1 Gulf Cooperation Council Countries
      • 5.5.5.1.2 Turkey
      • 5.5.5.1.3 Rest of Middle East
      • 5.5.5.2 Africa
      • 5.5.5.2.1 South Africa
      • 5.5.5.2.2 Rest of Africa

6 COMPETITIVE LANDSCAPE

  • 6.1 Market Concentration
  • 6.2 Strategic Moves
  • 6.3 Market Share Analysis
  • 6.4 Company Profiles (includes Global-level Overview, Market-level Overview, Core Segments, Financials as available, Strategic Information, Market Rank/Share for key companies, Products and Services, and Recent Developments)
    • 6.4.1 Seiko Epson Corporation
    • 6.4.2 Kyocera Corporation
    • 6.4.3 Nihon Dempa Kogyo (NDK) Co. Ltd
    • 6.4.4 Daishinku Corp.
    • 6.4.5 TXC Corporation
    • 6.4.6 SiTime Corporation
    • 6.4.7 Rakon Ltd
    • 6.4.8 Vectron International (Microchip)
    • 6.4.9 Siward Crystal Technology Co. Ltd
    • 6.4.10 Hosonic Electronic Co. Ltd
    • 6.4.11 Fox Electronics
    • 6.4.12 CTS Corporation
    • 6.4.13 Abracon LLC
    • 6.4.14 ECS Inc.
    • 6.4.15 Micro Crystal AG
    • 6.4.16 Jauch Quartz GmbH
    • 6.4.17 Statek Corporation
    • 6.4.18 River Eletec Corporation
    • 6.4.19 Mercury Electronic Ind Co. Ltd
    • 6.4.20 Raltron Electronics Corporation
    • 6.4.21 Aker Technology Co. Ltd
    • 6.4.22 NEL Frequency Controls Inc.
    • 6.4.23 WTL Frequency Products Co. Ltd

7 MARKET OPPORTUNITIES AND FUTURE OUTLOOK

  • 7.1 White-space and Unmet-Need Assessment
